产品性能与核心用途
通用电气GE IS200TREGH1BDB紧急停机终止板是专为燃气/蒸汽涡轮机设计的安全控制核心组件,作为Mark VI控制系统的关键部件,它能在设备异常时实现毫秒级断电保护。这种电路板通过双重冗余设计确保极端工况下的停机可靠性,特别适用于发电厂、炼油厂等对安全等级要求极高的工业场景。

产品定位与核心功能解析

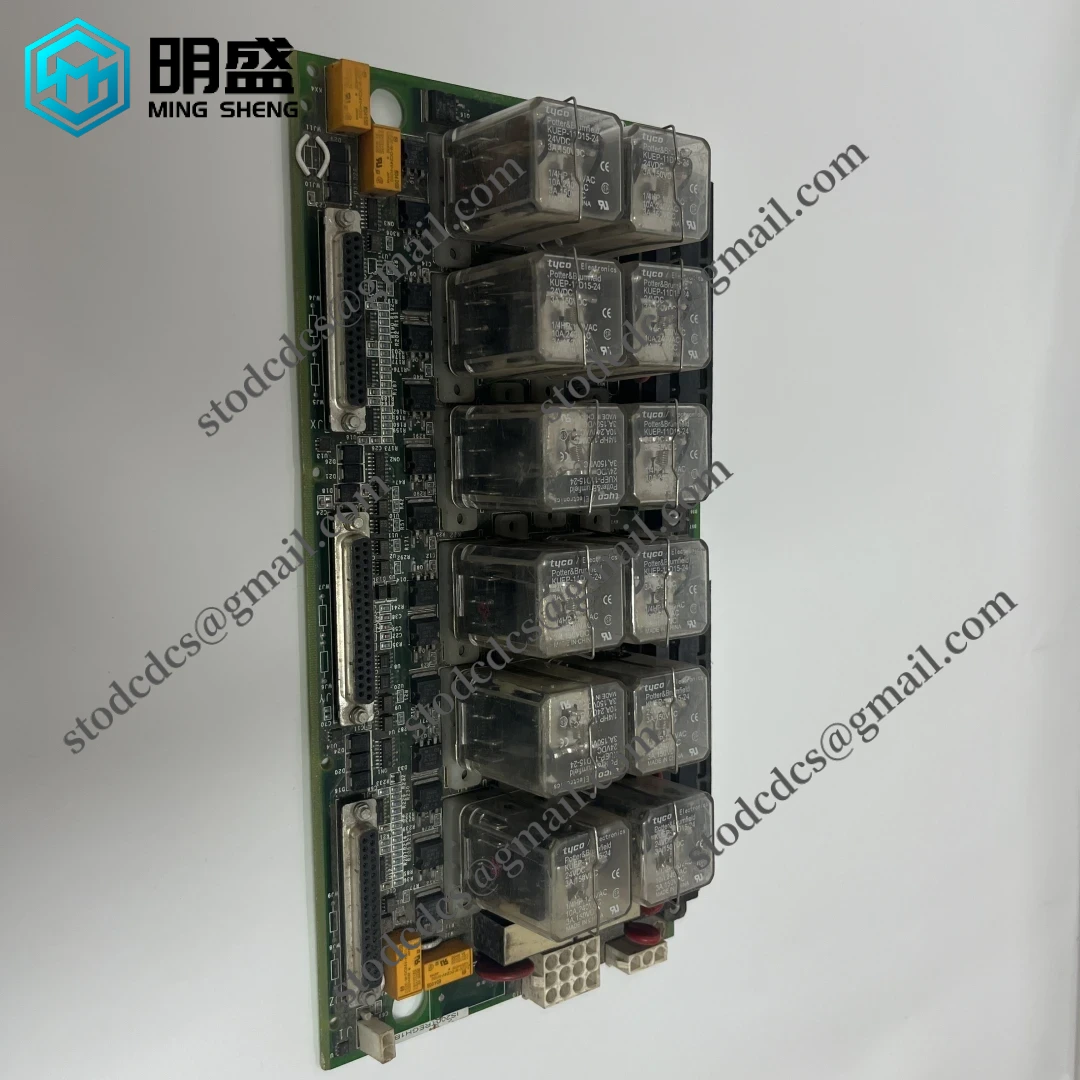

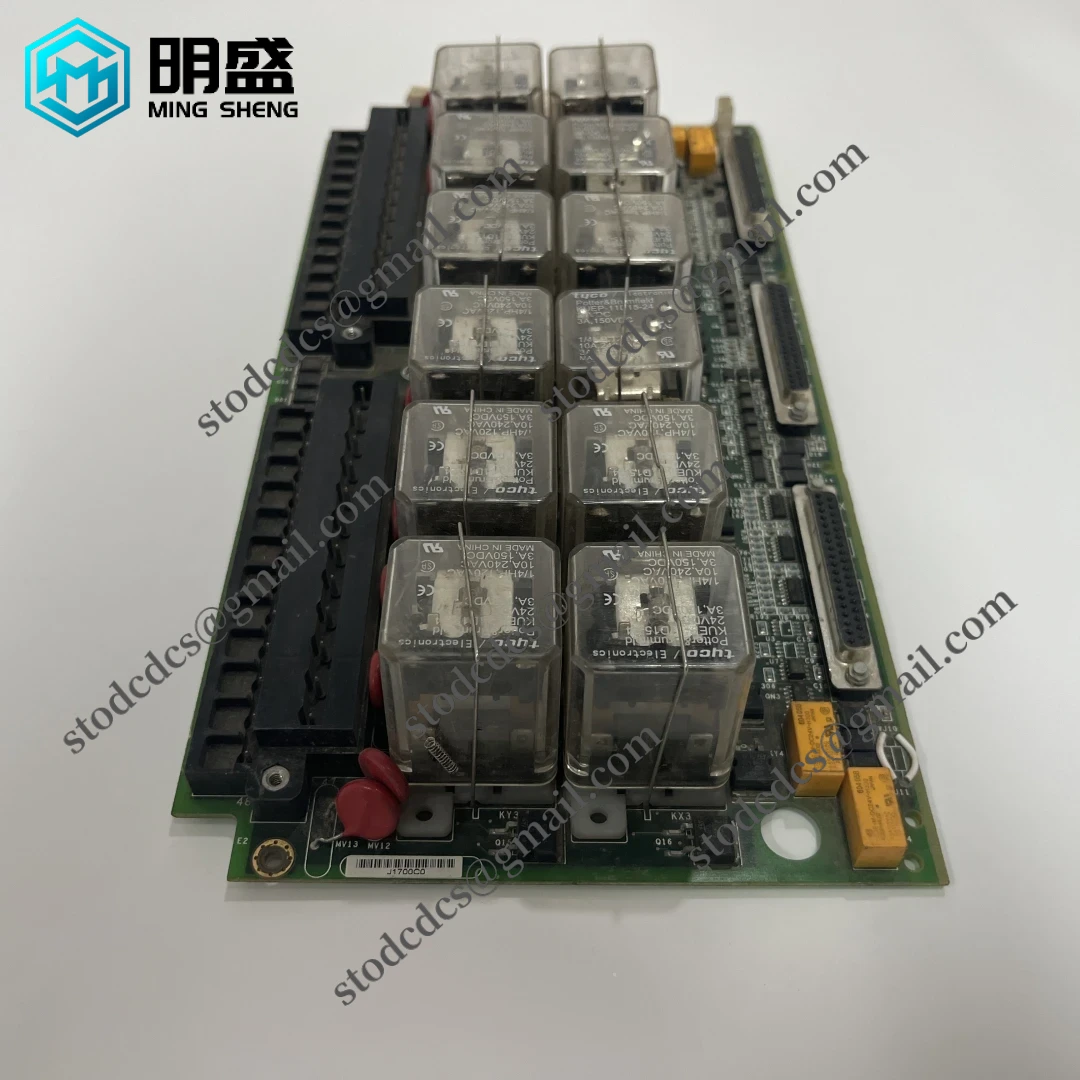

这款工业级电路板采用模块化设计理念,配备2组24针镀银端子组(共48个接点),支持多路紧急信号输入。右侧3组航空插孔连接器实现快速拆装功能,配合4颗高温黄色电解电容(工作温度达105℃),保证系统在恶劣环境下的稳定运行。其紧凑型结构(14.8×10.3×3.2cm)和轻量化(0.24kg)特性,完美适配各类空间受限的控制柜安装需求。

技术参数深度解析
| 参数类别 | 详细规格 | 技术优势 |
|---|---|---|
| 物理尺寸 | 148×103×32mm | 符合DIN 43652工业标准,兼容主流控制柜安装 |
| 端子配置 | 2组24针镀银端子 | 接触电阻<0.5mΩ,过载电流>15A |
| 电容参数 | 4×1000μF/105℃ | 日系化工NCC品牌,纹波电流处理能力提升40% |
| 防护等级 | IP54 | 防尘防水设计,适应-20℃~70℃工作环境 |

产品核心优势总结
作为GE工业自动化解决方案的核心部件,IS200TREGH1BDB具备三大突出优势:① 采用军规级PCB板(FR4-TG180),耐高温性能提升30%;② 集成式故障诊断电路,支持在线状态监测;③ 符合IEC 61508 SIL3安全认证。我们作为专业工控产品经销商,同步供应ABB PM866、Bently Nevada 3500/44、Foxboro FCP270等同类系统备件,提供全系列工业控制系统解决方案。
Product Features & Application Overview (English Version)
The GE IS200TREGH1BDB emergency shutdown termination board is a critical safety component designed specifically for gas/steam turbine applications. As part of the Mark VI control system, it ensures reliable shutdown operations under abnormal conditions with millisecond response time. This circuit board is widely used in power plants and oil refineries where the highest safety standards are required.
Product Positioning & Core Functions
This industrial-grade board adopts modular design with 2 groups of 24 silver-plated terminals (total 48 contact points) supporting multi-channel emergency signal input. The 3 aviation plug connectors on the right side enable quick installation/removal, while the 4 high-temperature yellow electrolytic capacitors (105℃ rating) guarantee system stability in harsh environments. Its compact structure (14.8×10.3×3.2cm) and lightweight (0.24kg) make it ideal for space-constrained control cabinet installations.
