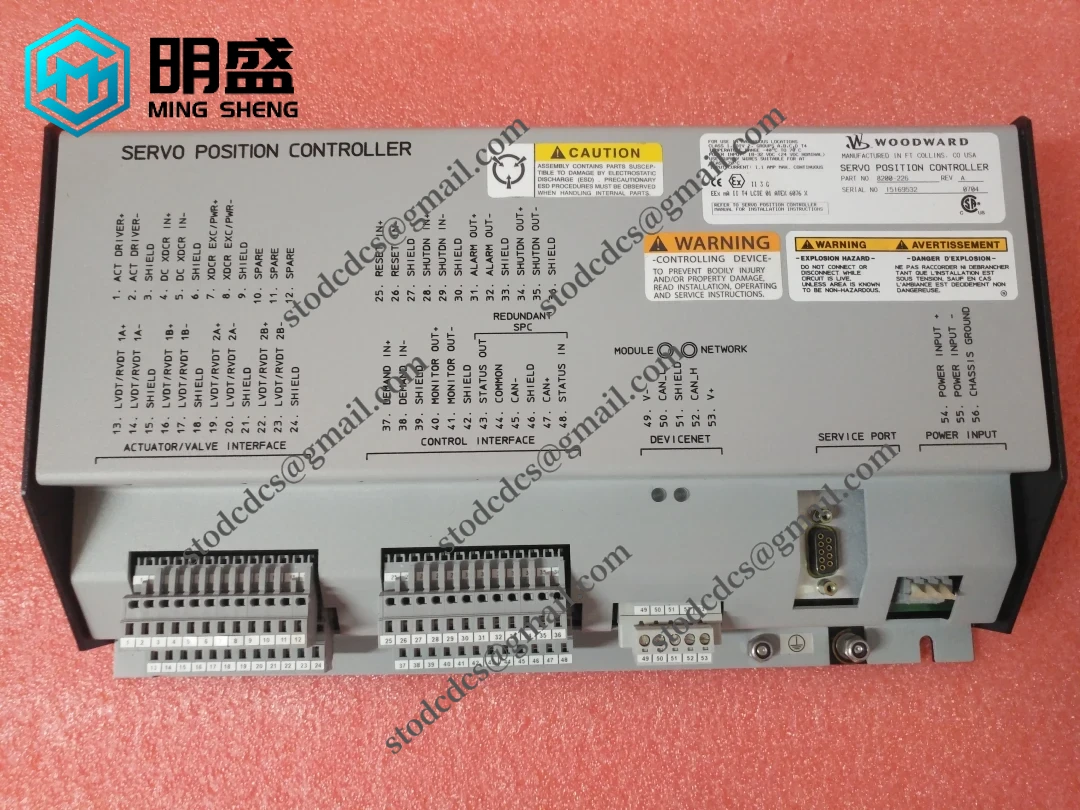

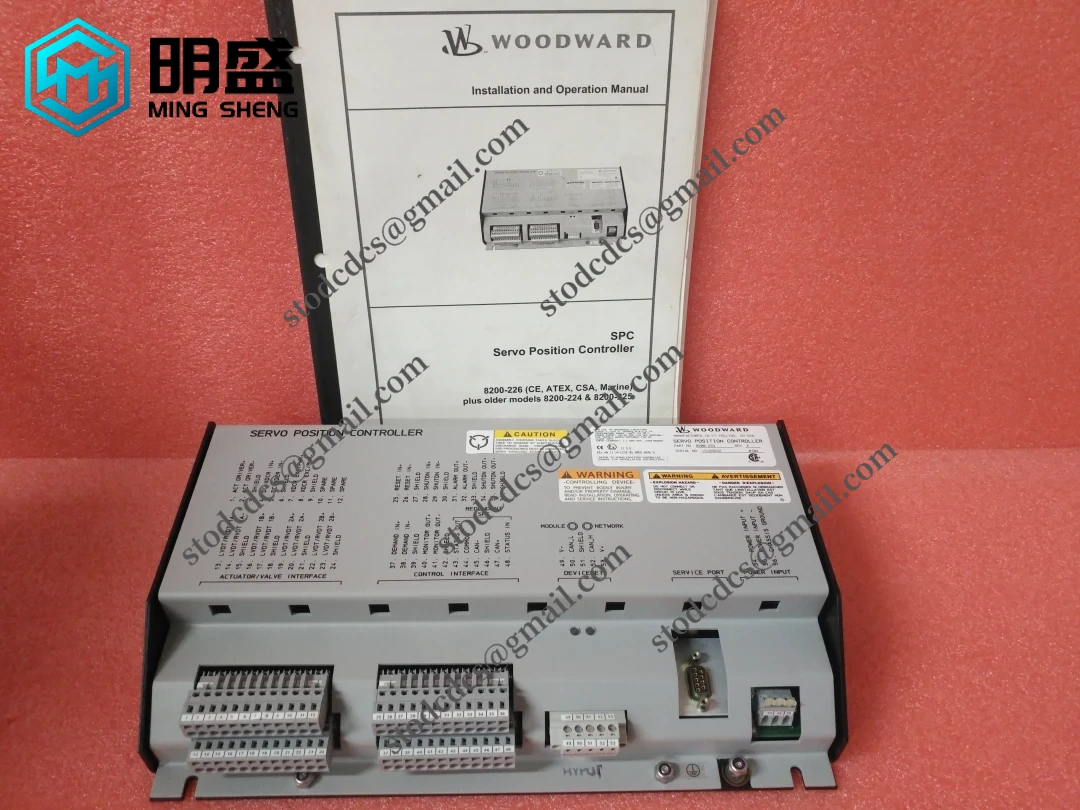

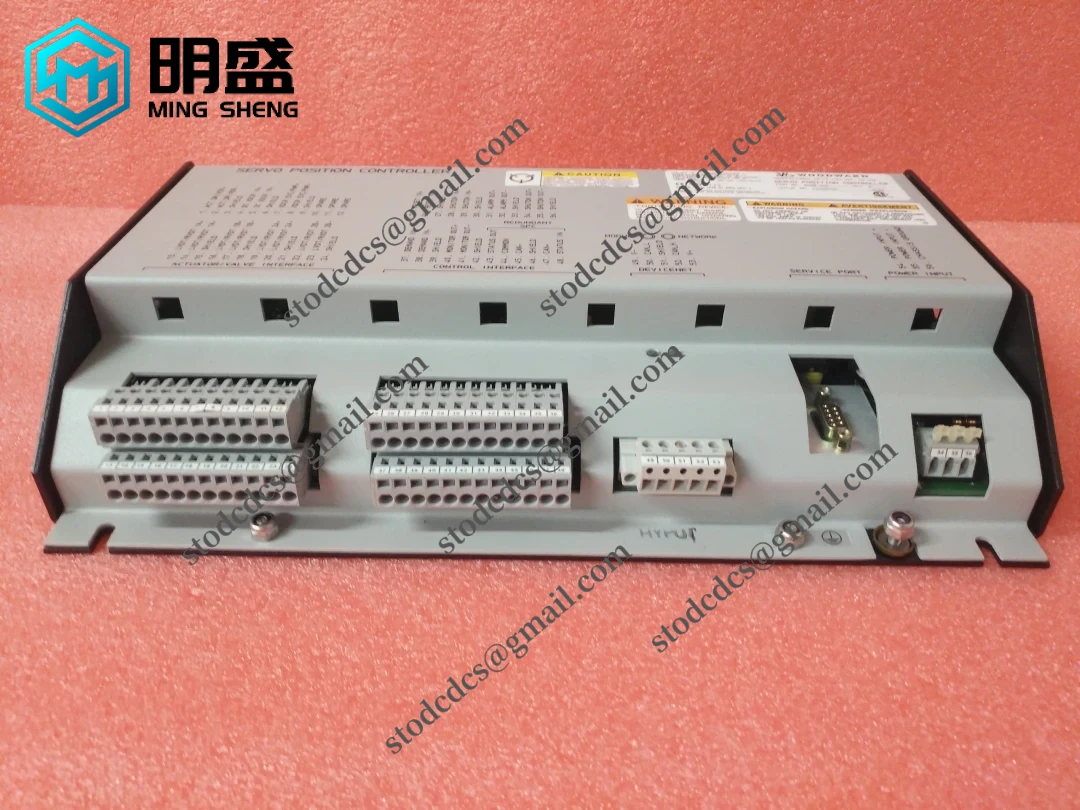

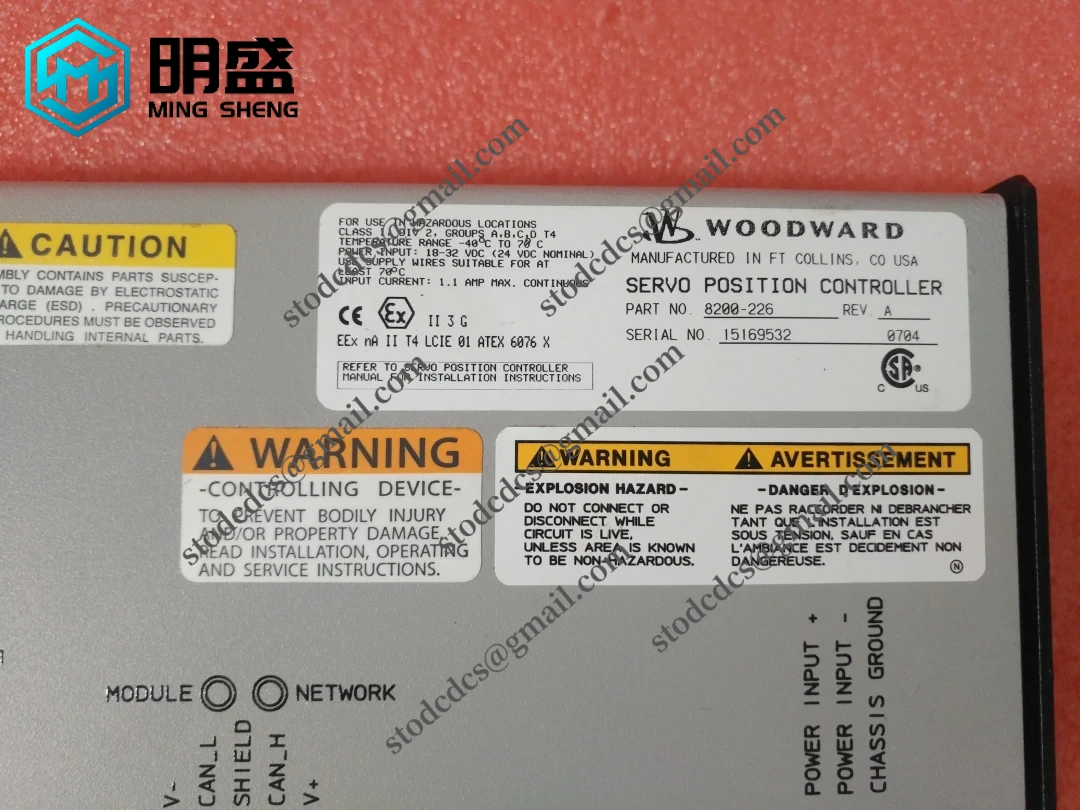

Woodward 8200-226伺服位置控制器模块
Woodward 8200-226伺服位置控制器模块专为工业闭环控制场景设计，能同时接收DeviceNet总线信号和4-20mA模拟量输入。这款模块采用数字信号处理技术，可精准控制比例伺服阀和积分伺服阀，实现微米级定位精度。其特有的动态响应补偿功能，让液压执行机构在负载波动时仍保持稳定运行，广泛应用于冶金机械、化工设备和自动化产线等复杂工况场景。
产品定位与核心功能
作为Woodward数字控制解决方案的重要组件，8200-226模块集成了双重冗余设计，支持热插拔更换。其核心优势体现在：① 24Vdc供电系统兼容多种工业电源标准；② 支持PROFIBUS-DP和Modbus RTU多协议通信；③ 内置自诊断功能可实时监测阀位反馈信号；④ 防护等级达到IP54的工业级金属外壳。这些特性使其特别适合在高温、粉尘、振动等恶劣环境中长期稳定运行。
技术参数解析
| 参数类别 | 详细指标 | 特殊价值 |
|---|---|---|
| 电气特性 | 24Vdc ±15%供电 输出电流±10至±250mA |
宽电压适应范围 支持大功率伺服执行机构 |
| 控制精度 | 11位ADC分辨率 ±0.1%满量程误差 |
实现微米级定位 满足精密加工需求 |
| 环境适应 | 工作温度-40~+70℃ 防护等级IP54 |
适应极端工况 降低维护频率 |
产品优势与品牌覆盖
作为Woodward核心合作伙伴，我们提供的8200-226模块均通过出厂检测认证，配备完整的技术文档。相较于同类产品，其优势体现在：① 支持双通道冗余配置；② 内置阀芯磨损补偿算法；③ 可编程PID参数整定功能。公司同时代理ABB、GE Fanuc、Bently Nevada等品牌的工控备件，涵盖PLC模块（如IC698CPE010）、安全系统（如Triconex 3008）、振动监测（如3500/44）等全系产品，可为客户提供一站式解决方案。
Product Overview (English)
Woodward 8200-226 Servo Position Controller Module is specifically designed for industrial closed-loop control applications. It can process both DeviceNet bus signals and 4-20mA analog inputs, achieving micrometer-level positioning accuracy. This module adopts digital signal processing technology to precisely control proportional servo valves and integral servo valves, widely used in metallurgical machinery, chemical equipment, and automated production lines.
As a key component of Woodward’s digital control solution, the 8200-226 module integrates dual redundancy design with hot-swapping capability. Its core advantages include 24Vdc power system compatible with multiple industrial standards, support for PROFIBUS-DP and Modbus RTU multi-protocol communication, built-in self-diagnosis function for real-time valve position feedback monitoring, and IP54-rated industrial-grade metal housing. These features make it particularly suitable for long-term stable operation in harsh environments such as high temperature, dust, and vibration.
